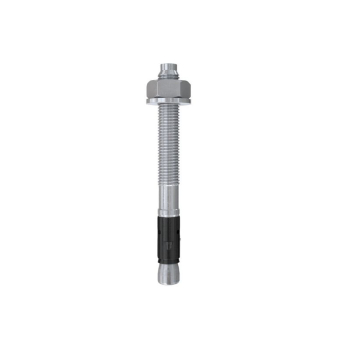

FAZ II 8/10 High Performance Anchor (Box 50)

- The FAZ II tried and tested expansion clip enables the highest load bearing capacity Thus fewer fixing points and smaller anchor plates are required.
- The reduced anchorage depth allows for significantly reduced drill hole depths and reduces the number of reinforcement hits. This allows for a noticeably quicker installation.
- Fewer hammer blows when hammering in the anchor, together with the low torque slippage, ensure a noticeably simple and comfortable setting process.
- The international approvals guarentee maximum safety and the best performance. These approvals even cover the use in earthquake zones or the use of hollow drills.

The Fischer bolt anchor FAZ II is the steel anchor for the most demanding requirements. Heavy loads are fixed into cracked concrete with the steel anchor. Due to simple mounting, the FAZ II can be used in a particularly flexible manner. The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties.

The zinc-plated steel version is used to fix loads in indoor areas. The steel anchor, is for example, suitable for fixing railings, cable trays and consoles.
